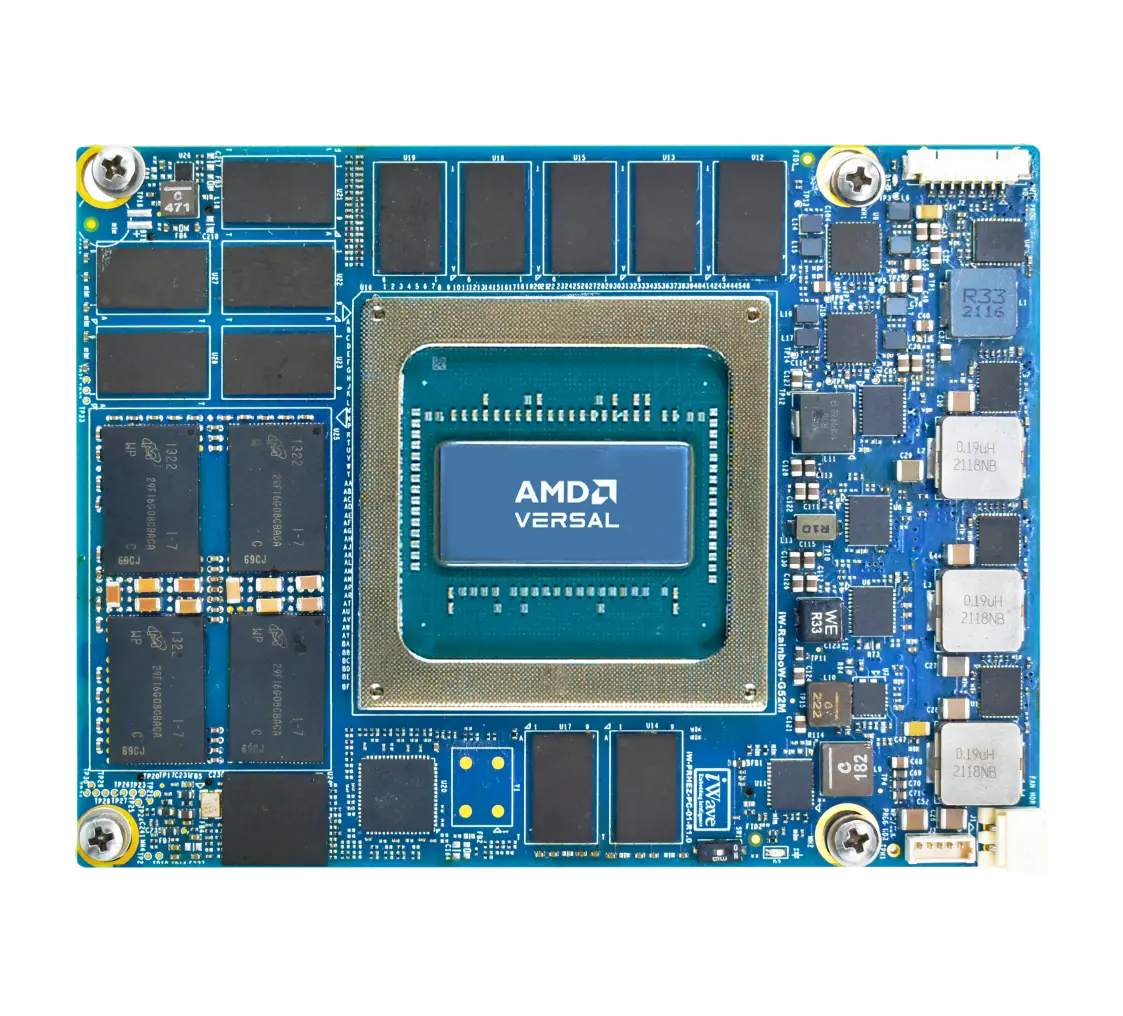

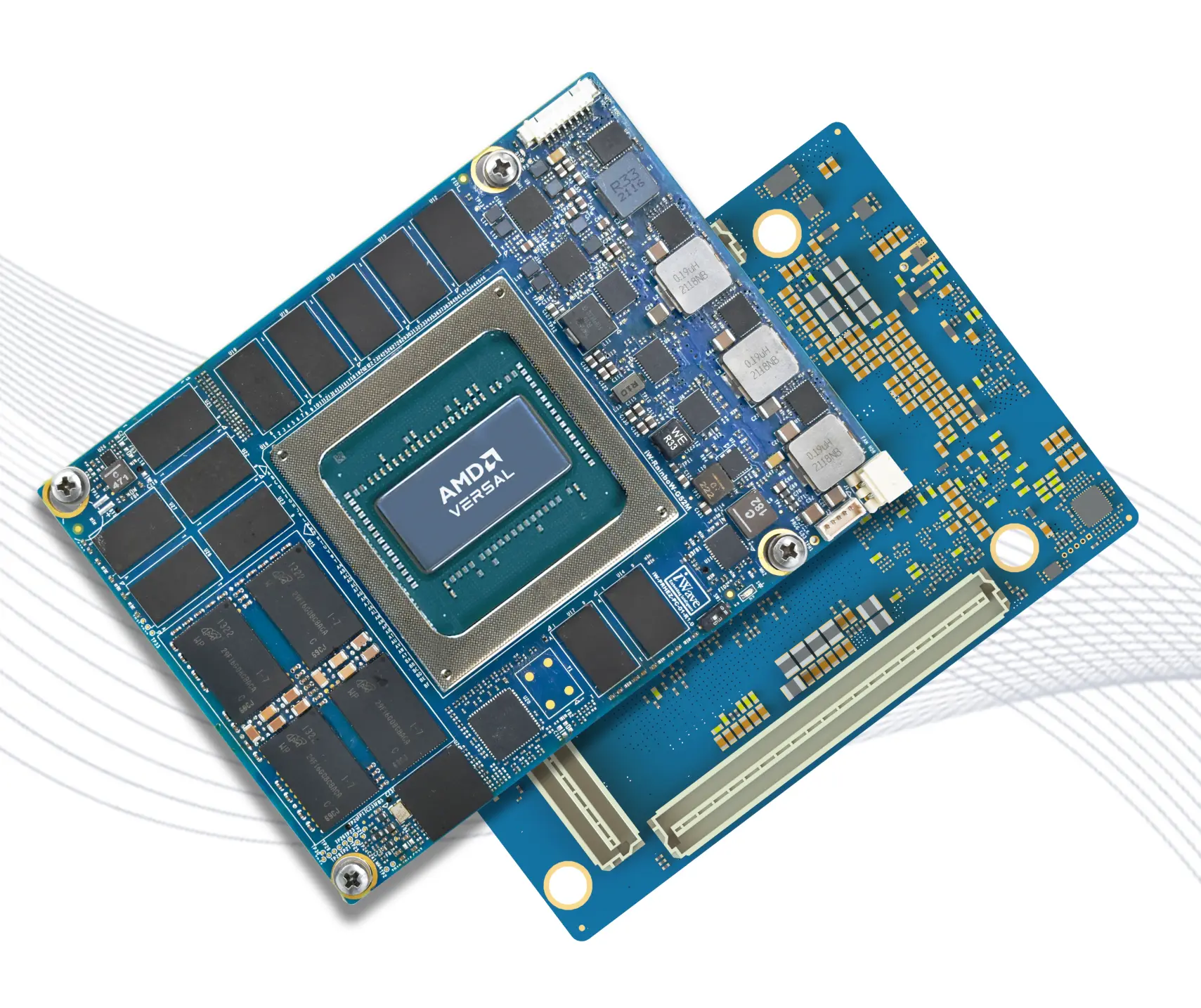

Versal™ Premium
System on Module
iG-RainboW-G63M
- Versal Premium SoC with VSVA2785 package
- Compatible with VP1552/1502/1402/1202/1102 Devices
- Three 64bit, 4GB LPDDR4 (Expandable)
- 16 Channels of GTM Transceivers up to 112Gbps
- 68 Channels of GTYP Transceivers up to 32Gbps
- FPGA IOs (Up to 96LVDS/192SE)
Documents
| Features | Details |
|---|---|
| Versal Premium SoC | Versal Premium SoC with VSVA2785 package Dual-core Arm Cortex-A72 @1.7GHz Dual-core Arm Cortex-R5F @800MHz Up to 3837K Logic cells and 1754K LUTs GTYP Transceivers x 68 @32 Gbps GTM Transceivers x16 @112Gbps 96 LVDS Pairs and 192 SE FPGA IOs |
| Memory | 64bit, 4GB LPDDR4 from PS Dual 64bit, 4GB LPDDR4 from PL 4Kbit EEPROM |
| Storage | 256MB QSPI flash 16GB eMMC Flash |
| Other On SOM Features | 10/100/1000 Ethernet PHY with PTP USB Transceiver PHY Clock Synthesizer FAN Header |

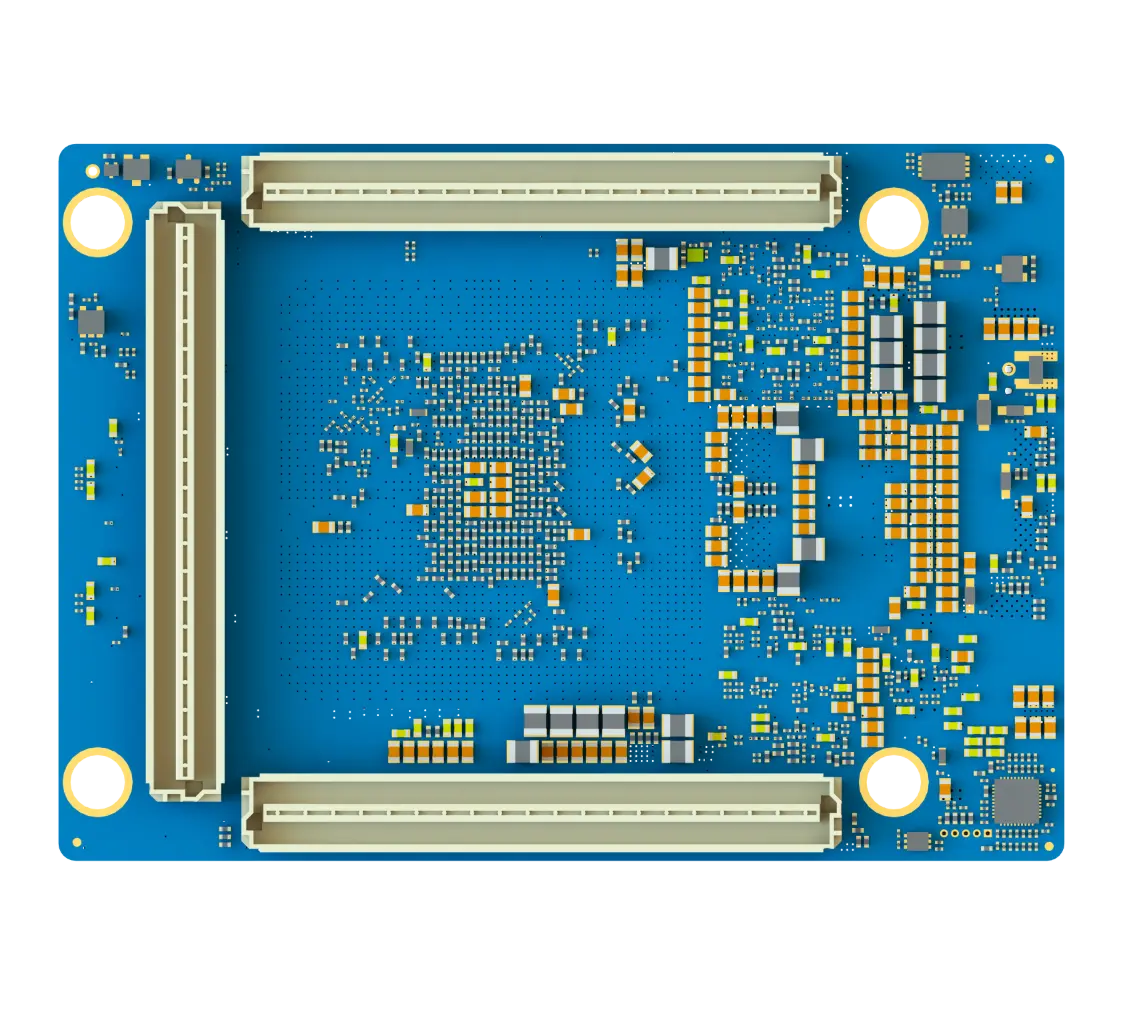

| Board to Board Connector1 Interfaces(400pin) | 96 LVDS Pairs and 192 SE FPGA IOs |
| Board to Board Connector2 Interfaces(400pin) | From PL Block
From PS Block
|
| Board to Board Connector3 Interfaces(400pin) | PL GTYP Transceiver x36 up to 32Gbps PL GTM Transceiver x16 up to 112Gbps |
| General Features |
|
Thermal design is a crucial factor for highly integrated System on Modules. iWave offers Fan Sink solution for Versal premium System on Module.
